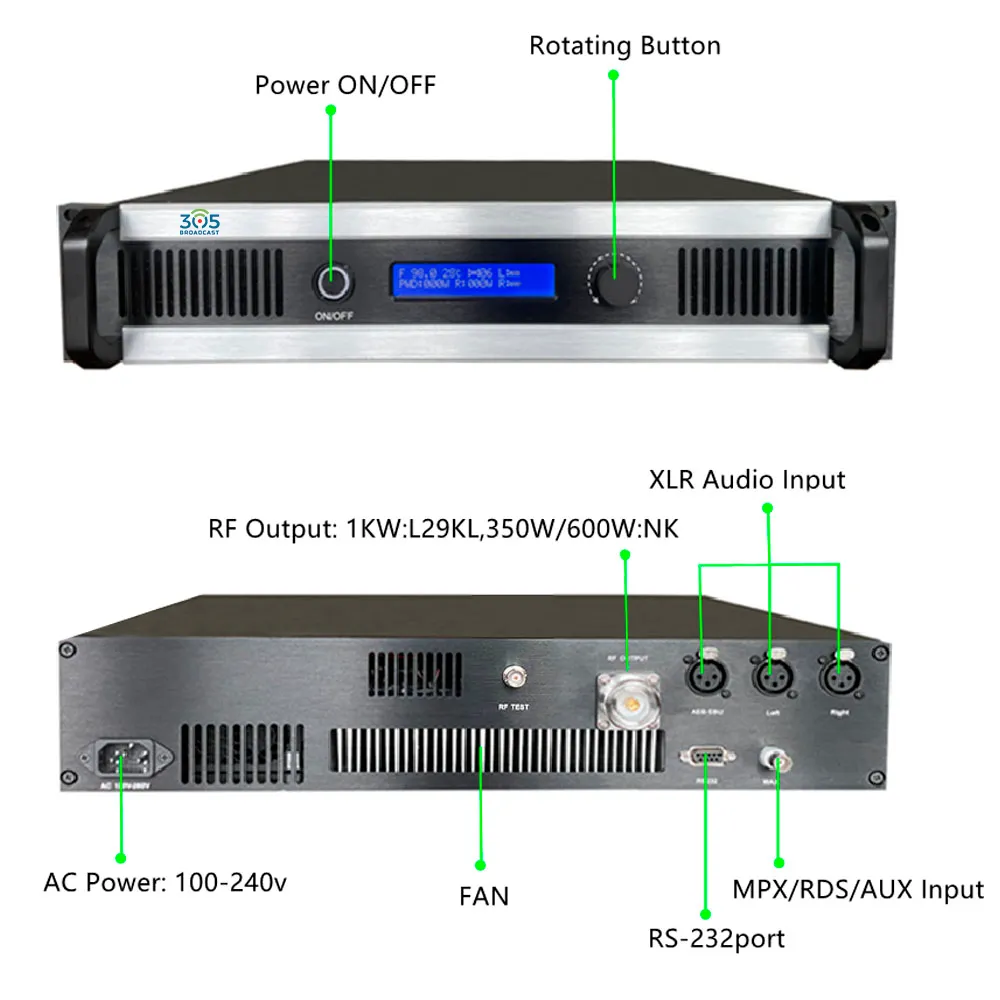

305 Broadcast TX LIGHT SERIES - 500W TRANSMITTER

Technical Specifications

• Frecuency Range: 87,5 MHz ~ 108 MHz
• Frecuency Setting step: 10KHz
• Carrier Frequency Precision: ±200Hz
• Residual Wave Radiation: ≥ 65dBc
• Audio Input Impedance：600Ω,Balance
• eparation：60dB Pilot Signal Modulation：8%~10%
• Sub-carrier Suppression：≥65dB
• Audio Input Level：±10dBm,step 0.01dB
• S/N：≥75dB(30H~15kHz,100%)
• Audio Harmonic Distortion：<0.05%
• Audio response： ±0.05dB(30Hz~15KHz)
• Output Load Impedance：50Ω
• Output Power：0~1000W
• Deviation：±75kHz

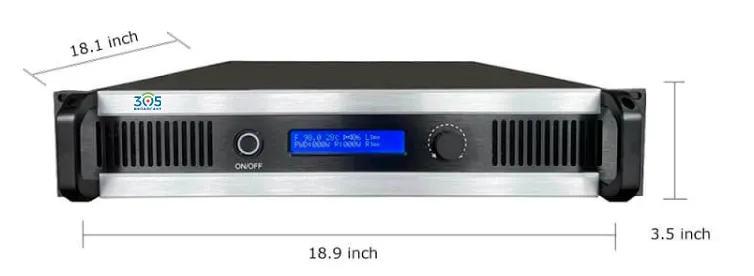

• Size：460mm*480mm*88mm
• Weight：15KG

Other Features

• Overheat Protection
• SWR Protection
• Fan Failure Alarm
• Ajustable Power
