Product Details
＋The System 10 PRO ATW-1311L from Audio-Technica is a digital 24-bit/48 kHz wireless microphone system that operates on the 2.4 GHz ISM band and is used to capture audio for applications such as live stage, theater, DJ setups, and more.
The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units, however the receiver units can be released from the chassis and mounted remotely (up to 328' away) via Ethernet cable. Up to five chassis or 10 receiver units can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels.
In addition, other features include an easy-to-read display on each transmitter and receiver unit for quick setup, clear and natural-quality sound, and three levels of diversity, namely frequency, time, and space. Frequency Diversity sends the signal on two allocated frequencies, Time Diversity sends the signal in multiple time slots, and Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity.

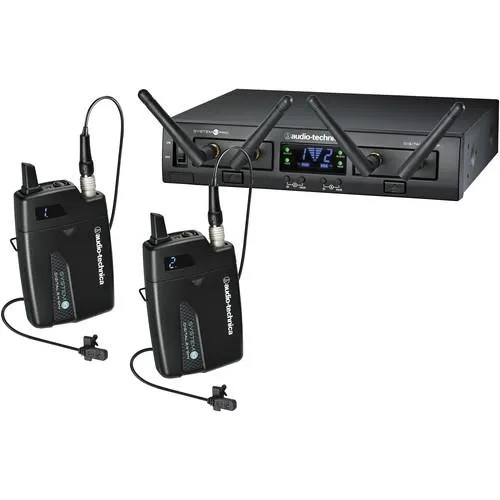

The System 10 PRO Rack-Mount system includes one ATW-RC13 receiver chassis with rack-mount adapters, two ATW-RU13 receiver units with corresponding AT8690 receiver unit mounting brackets, one RJ12 cable, one AC adapter, two MT830cW lavalier microphones, and two ATW-T1001 bodypack transmitters.
-
System 10 PRO ATW-RC13 Rack-Mount Digital Wireless Receiver (2.4 GHz)
- Audio-Technica System 10 PRO Rack-mount Digital Wireless Systems
The System 10 PRO ATW-RC13 from Audio-Technica is a digital 24-bit/48 kHz wireless receiver that operates on the 2.4 GHz ISM band. It can be used to capture audio when paired with a transmitter and microphone for applications such as live stage, theater, DJ setups, and more.
The System 10 PRO features a half-rack chassis that allows you to mount one or two receiver units; however, the receiver units can be released from the chassis and mounted remotely (up to 328' away) via an Ethernet cable. Up to five chassis (10 receiver units) can be linked using a RJ12 cable, creating a multi-channel system with up to 10 channels being used simultaneously.
In addition, other features include an easy-to-read display for easy setup, and three levels of diversity, namely frequency, time, and space, to help deliver a professional-quality sound. Frequency Diversity sends the signal on two allocated frequencies. Time Diversity sends the signal in multiple time slots. Space Diversity uses two antennas on each transmitter and receiver unit, thus to help maximize signal integrity.
Each System 10 PRO rack-mount receiver includes a rack-mount adapter, receiver unit mounting brackets, one RJ12 cable, and an AC adapter.
- Digital 24-bit/48 kHz wireless operation for professional-sound quality and dependable performance
- Receiver units can be docked in the chassis or mounted remotely (up to 328' away) via an Ethernet cable for added versatility
- Up to five chassis (10 receiver units) can be linked and used simultaneously
- Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
- Extremely easy operation with instantaneous channel selection, sync, and setup
- Ground-lift switch helps eliminate audible hum caused by ground loops
-
ATW-RU13 System 10 PRO Receiver Unit (2.4 GHz)
The ATW-RU13 System 10 PRO Receiver Unit from Audio-Technica is a 24-bit/48 kHz digital module that operates in the 2.4 GHz range. It can be used when paired with a System 10 PRO rack-mount system chassis and transmitter/microphone (sold separately) to capture audio for applications such as presentations, lectures, boardrooms, live stage, theater, houses of worship, and more.
The ATW-RU13 receiver module provides easy setup with clear, natural sound quality and has three levels of diversity assurance, namely frequency, time, and space. This module can also be used remotely and linked via an Ethernet cable, and used up to 328' away from the chassis. The ATW-RU13 includes two antennas with one receiver holder.
-
ATW-T1001 System 10 Digital UniPak Transmitter
The Audio-Technica ATW-T1001 System 10 Digital UniPak Transmitter is a digital high-fidelity wireless transmitter designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup, and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, this digital transmitter offers easy operation. It also offers an easy-to-read digital ID display.
-
