PRODUCT OVERVIEW

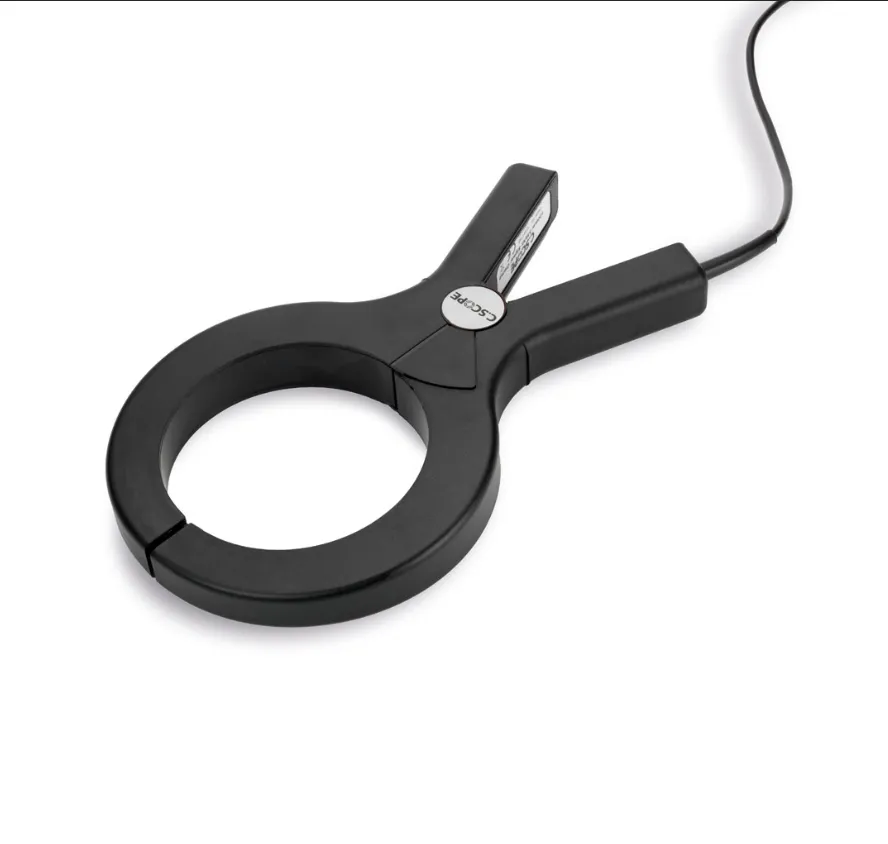

A Signal Clamp is a safe and straightforward way to apply the Generator/Transmitter signal to a cable or small pipe to enable precision tracing of this service.

The C.Scope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.

Please contact us or download the brochure if you would like to know more about the C.Scope accessories.

SPECIFICATIONS

Product Name
Signal Clamp

Part No.
YIRC-33-8

Construction
Toroidal induction ring housed in robust plastic.
Spring loaded jaws.

Optimisation
Tuned for optimum use with 33kHz Signal Generators.

Safety
Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995

Dimensions
270 x 160 x 28mm

Compatibility
Maximum service diameter = 105mm
Suitable for use with all C.Scope Signal Generators and Transmitters.
