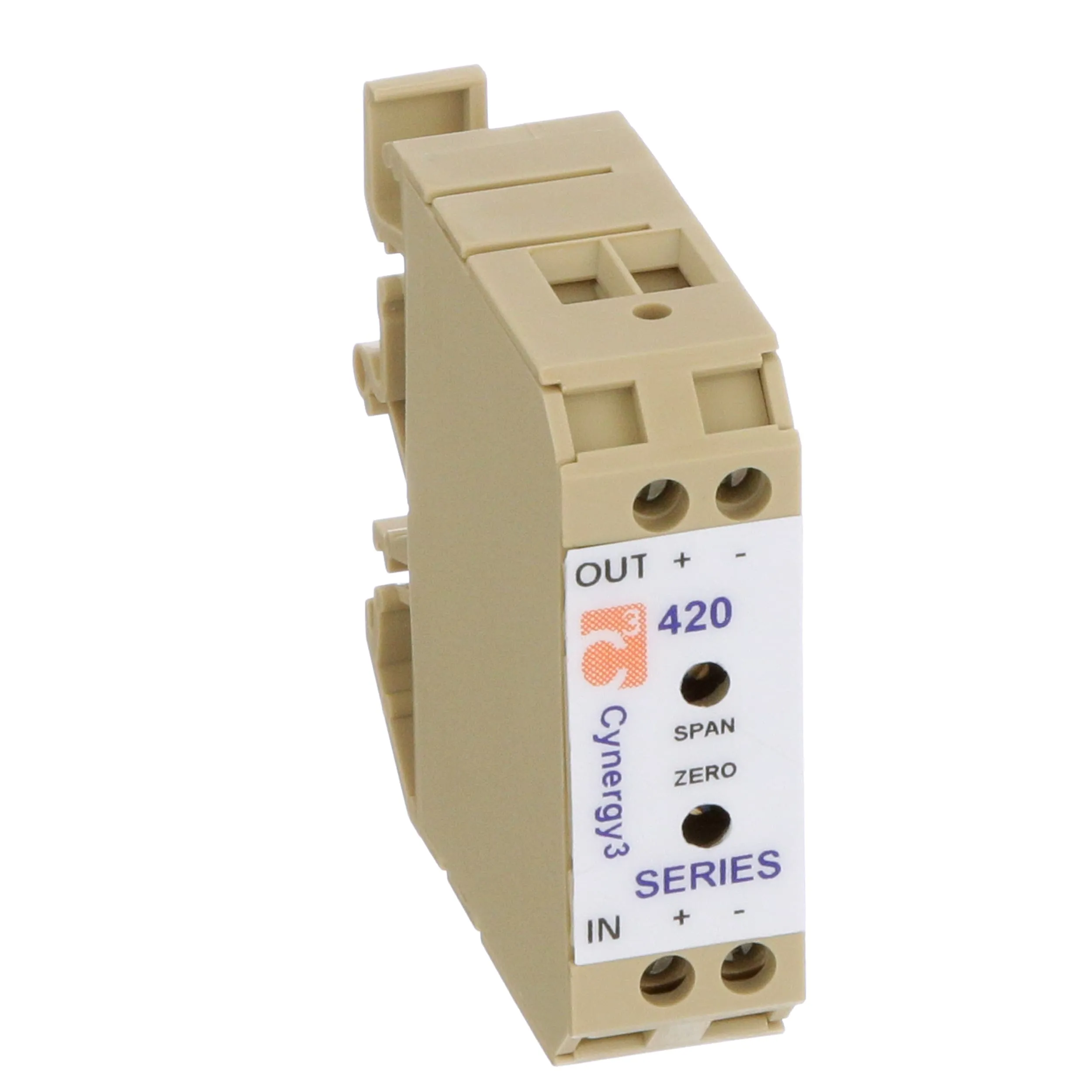

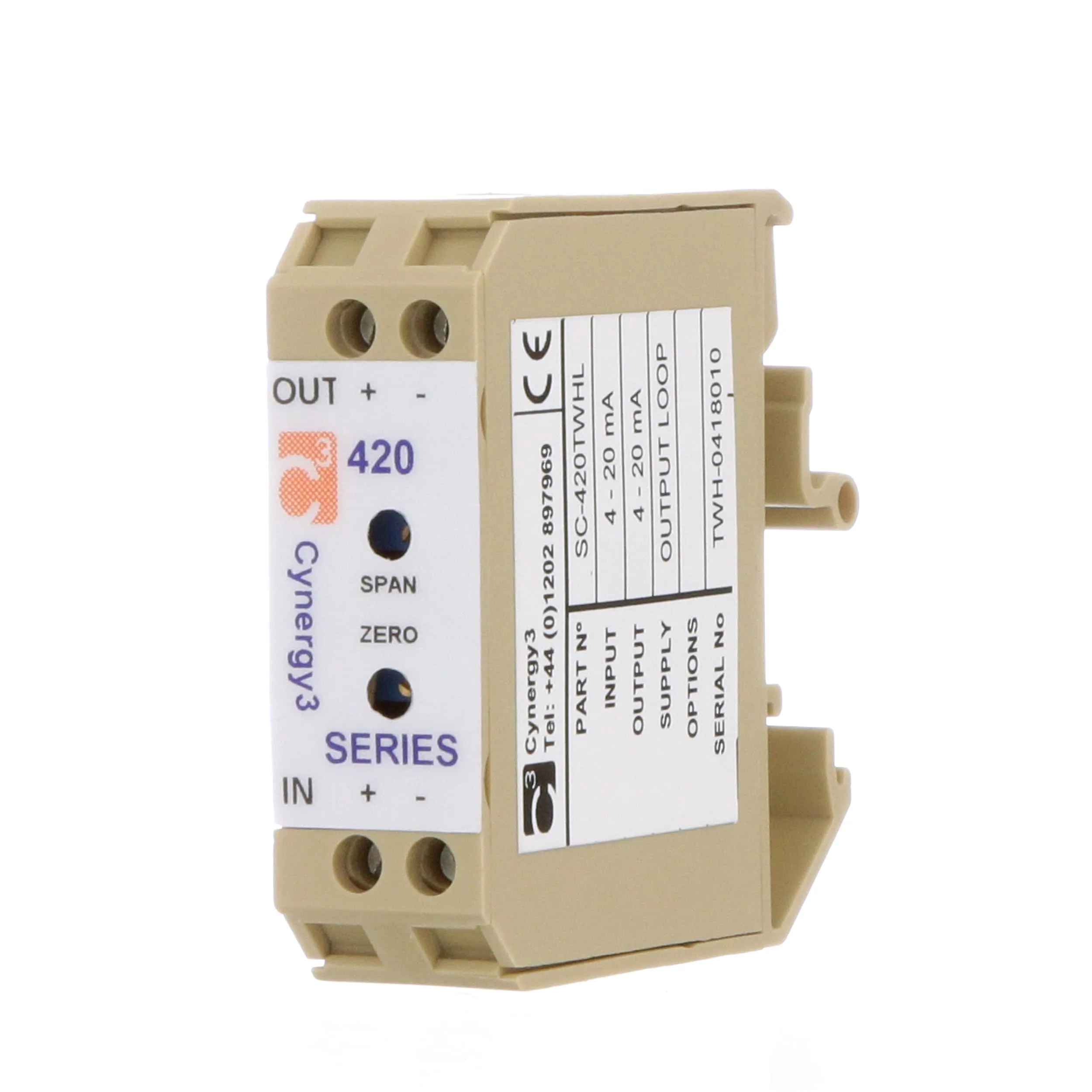

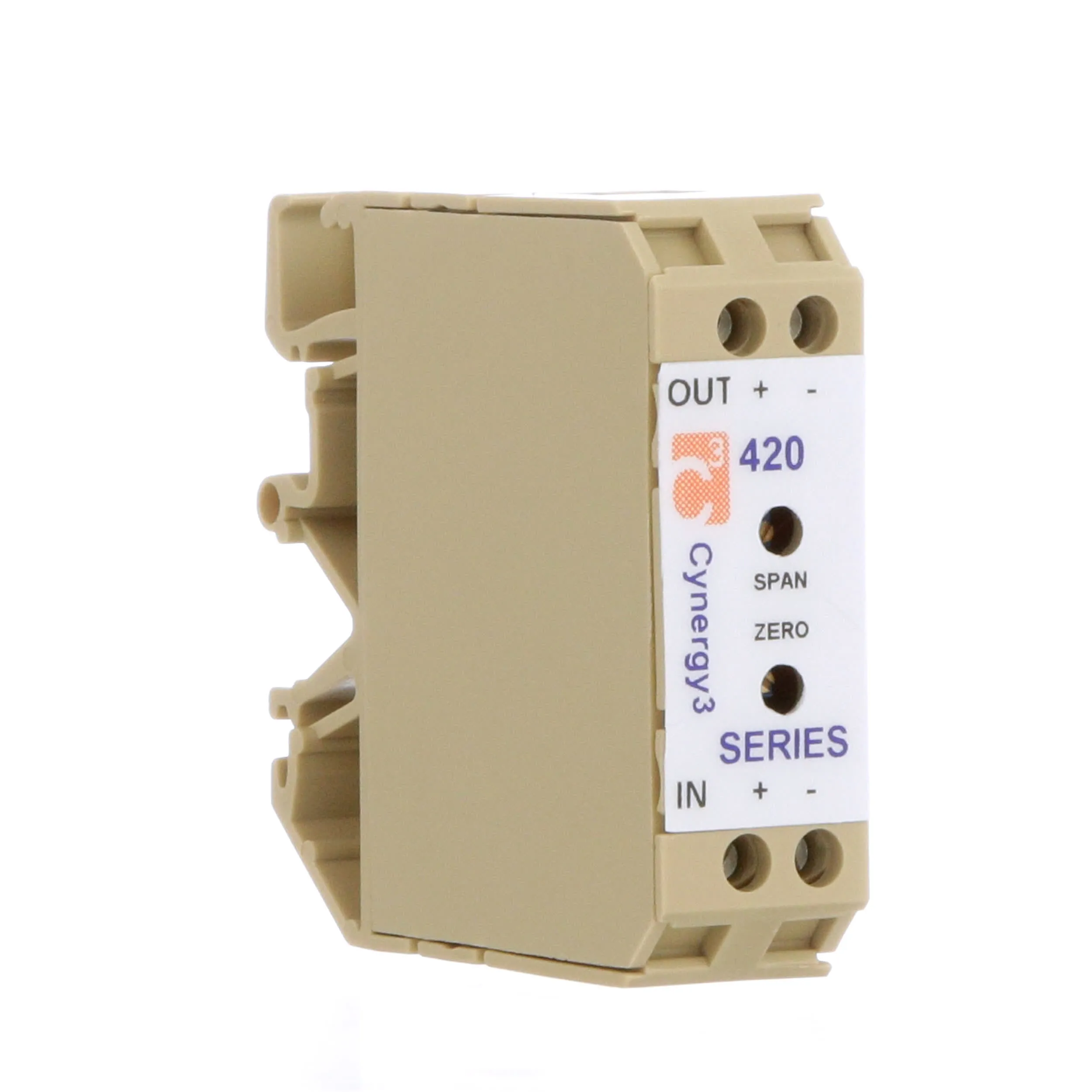

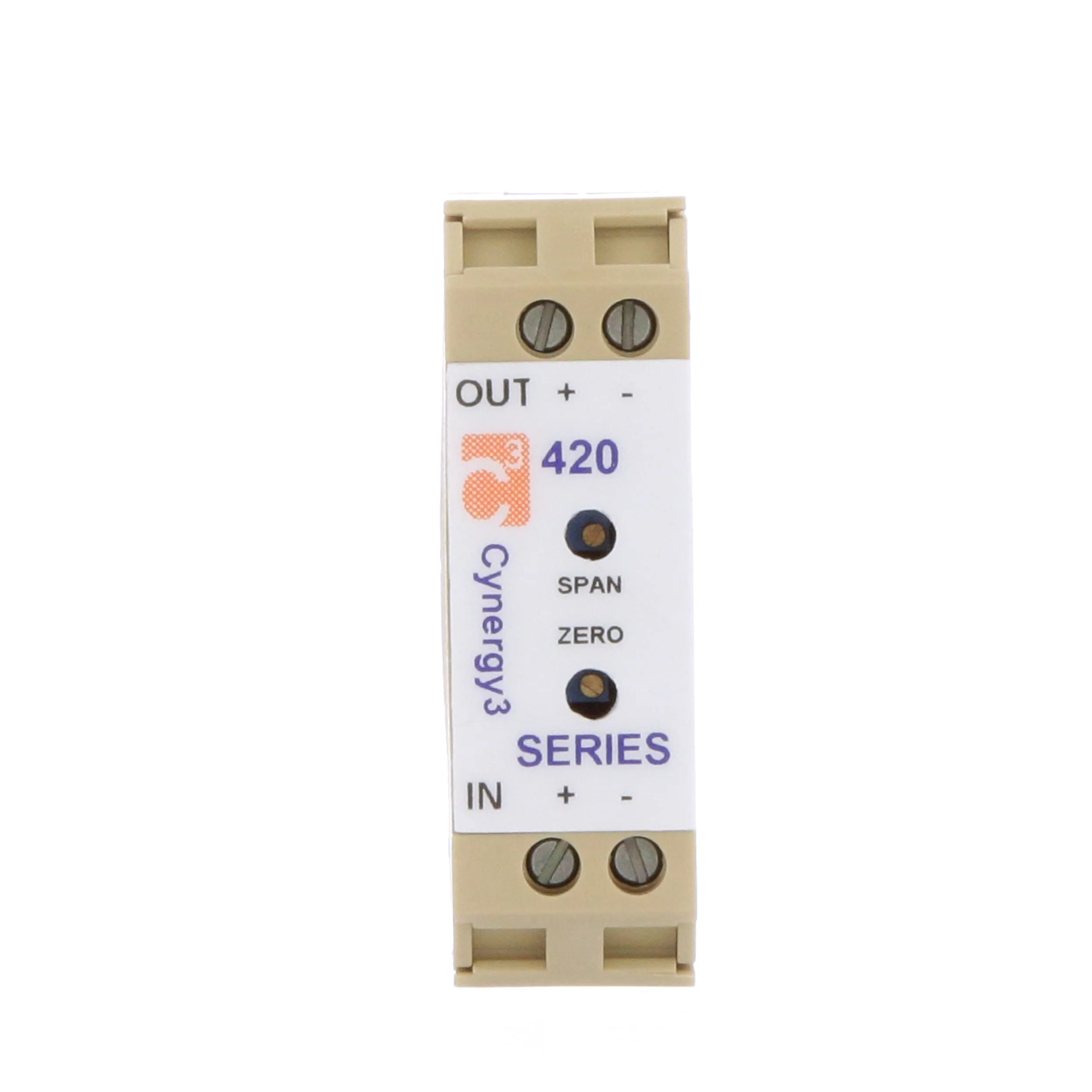

Overview

The SC4002ALM-6 trip-amplifier can accept a wide range of inputs including 4-20mA, thermocouple, RTD and voltage types. The unit can have up to two relay outputs and each can operate as a high or low trip. The unit also produces an isolated high level output.
The relay outputs are single pole change-over relays with mains voltage rating. Each trip can be configured so that the alarm condition can be above or below the setpoint. The relays can be energised or de-energised in the alarm condition, satisfying fail-safe and non-fail safe applications. In addition the alarm LED's can be selected to light when the relay is either on or off.
The input stage is isolated from the output and power supply and the inputs can be user-reconfigured for several different ranges if specified at point of order. In addition there is an optional isolated transmitter supply of 24Vdc, suitable for exciting most standard transmitters.
In addition numerous functions can be selected using the built-in menus including latching functions, delay on or delay off and an alarm delay on power up. The power supply is a wide ranging 16-30Vdc supply

Features:
