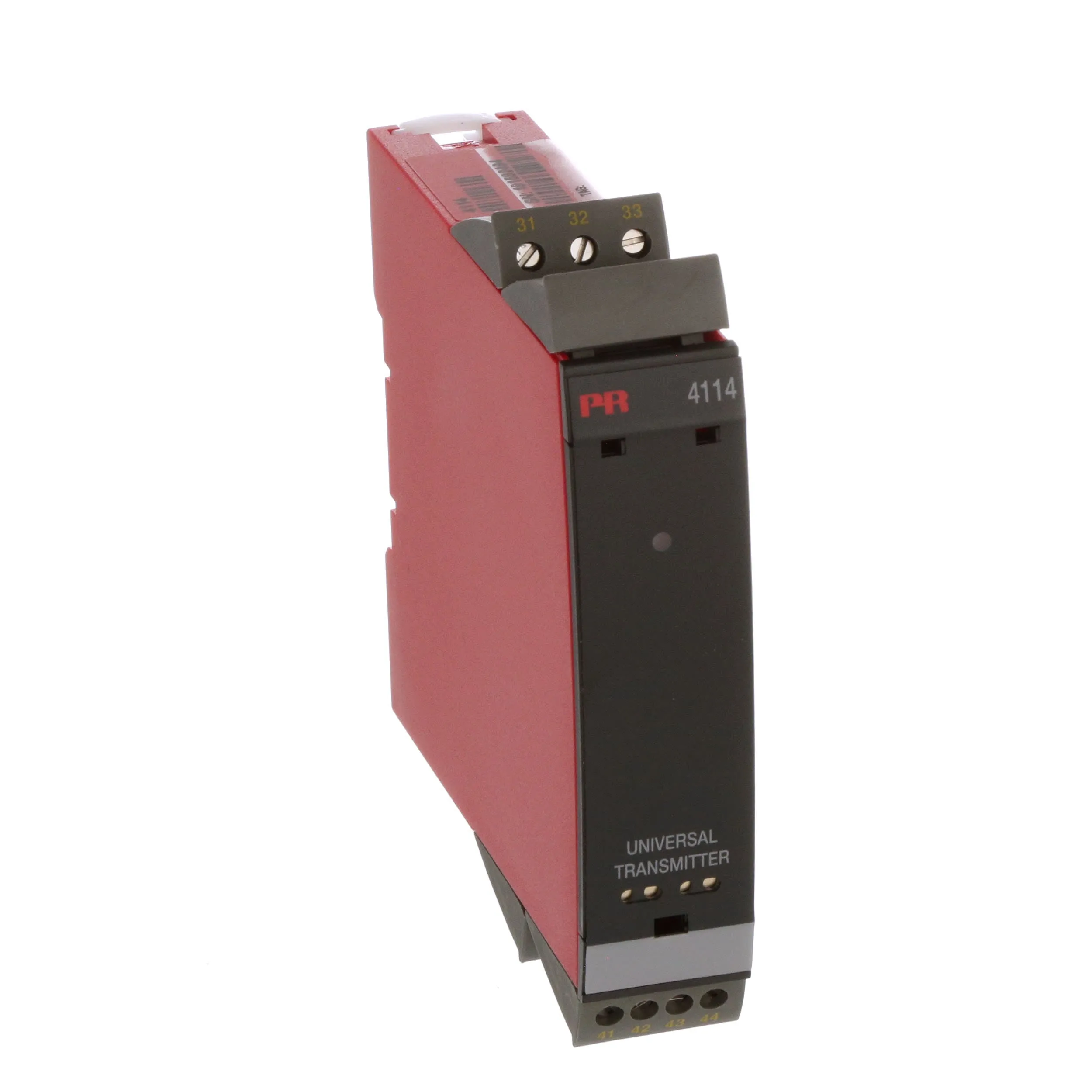

Name: PR Electronics 4114
SKU: 214586

Product Details

＋

Product Attribute	Attribute Value
Input Type	RTD ; Thermocouple ; Ohm ; Potentiometer ; mA ; Voltage
Input, Range	0 to 20 mA
Mounting Type	DIN Rail Mount
Output Type	Current ; Voltage
Series
Supply Voltage	253 VAC ; 300 VDC

Overview

The 4000 series gives you a unique range of single devices that accept a wide range of inputs and provide a wide range of outputs. This means that the 4000 series covers multiple applications in a single device. These devices are easily deployable as your site standard. When the 4000 series is used in combination with the 4501 display / programming front, all operational parameters can be modified to suit any application. As the series is designed with electronic hardware switches, it is not necessary to open the device for setting of DIP-switches. The 4116 is our most universal transmitter. It works with inputs such as RTD, TC, Oh, potentiometer, mA and Voltage while offering voltage or current outputs and 2 relays. In addition, it accepts universal AC or DC power supplies.

Features:

Programming, process monitoring and diagnostics via 4511 / 4501

Supply voltage, universal 21.6...253 VAC, 50...60 Hz or 19.2...300 VDC

Accuracy Better than 0.1% of selected range

4-port 2.3 kVAC/250 VAC galvanic isolation.

Linearized, electronic temperature measurement with RTD or TC sensor.

Conversion of linear resistance variation to a standard analog current / voltage signal, i.e. from solenoids and butterfly valves or linear movements with attached potentiometer.

Power supply and signal isolator for 2-wire transmitters.

Process control with 2 pairs of potential-free relay contacts and analog output.

The 4116 is designed according to strict safety requirements and is therefore suitable for application in SIL 2 installations.
