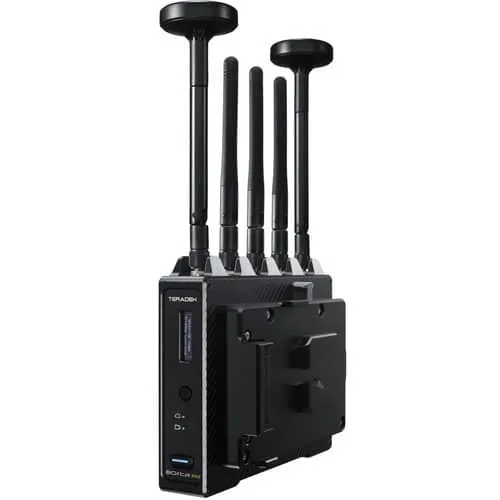

Teradek Bolt 4K Max 12G-SDI/HDMI Wireless RX V-M

Use the Bolt 4K MAX 12G-SDI/HDMI Wireless Receiver from Teradek with a V-mount plate to receive visually lossless 4K60 video signals from any Bolt 4K series transmitter with less than 1 ms of latency and send them out two 12G-SDI outputs or one HDMI output. The receiver unit can be secured to a camera or other SDI/HDMI video source via built-in 1/4"-20 or 3/8"-16 threaded holes. The five included antennas provide a powerful signal that can receive from up to a 3000' line of sight.

The receiver supports cross conversion from HDMI input to SDI loop output. It also supports HDR workflows, 10-bit 4:22 via 12G-SDI, and 8-bit 4:4:4 via HDMI. Its bright LED screen shows current settings and frequencies, and the transmitter can also connect with the Bolt app for iOS via Bluetooth for configuration.

Power can be provided using the integrated 2-pin connector with the included AC adapter or with a V-mount battery. A Bolt 4K transmitter supports up to six receivers, and it can operate up to six transmitters with receivers in the same area with Wi-Fi or 5 GHz appliances with the help of the noise rejection feature. It also features built-in AES-256 encryption with RSA-1024 key exchange to protect your video from prying eyes.

Features:

Two 12G-SDI outputs and one HDMI output

3000' line-of-sight range

Compatible with any Bolt 4K series transmitter

Up to 48 kHz 24-bit PCM embedded audio supported

SDI ancillary data support for metadata, timecode, and start/stop flags from certain camera manufacturers

1/4"-20 and 3/8"-16 mounting points

2-pin LEMO-type power input

Built-in display with joystick navigation

Micro-USB port for upgrades
